FD5000 Medium voltage drive （Front and rear maintenance）

The FD5000 series high voltage inverter is high-high voltage device, which is controlled by DSP, with the SVPWM and cell in series multi-level technology to guarantee the inverter suits different industrial fields. The product was awarded as national key new products in 2003,high voltage hoister inverter was awarded as National Torch Project in 2005 and funded by Ministry of Science and Technology Innovation Fund for SMEs project. The FD5000 series high voltage inverter includes the phase shifting transformer, power cell and controller.

FD5000-压缩后-1-
FD5000-压缩后7

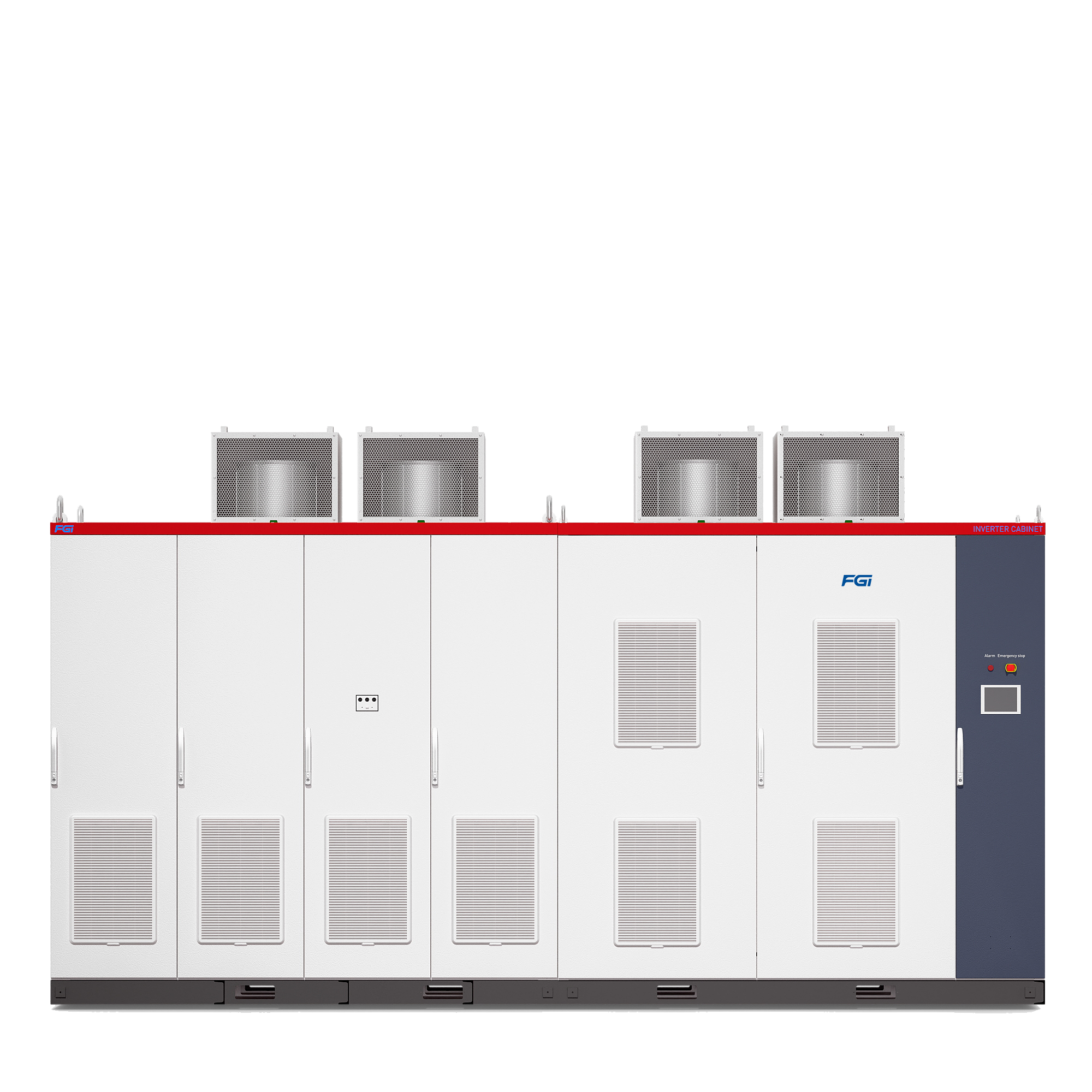

FD5000-压缩后4

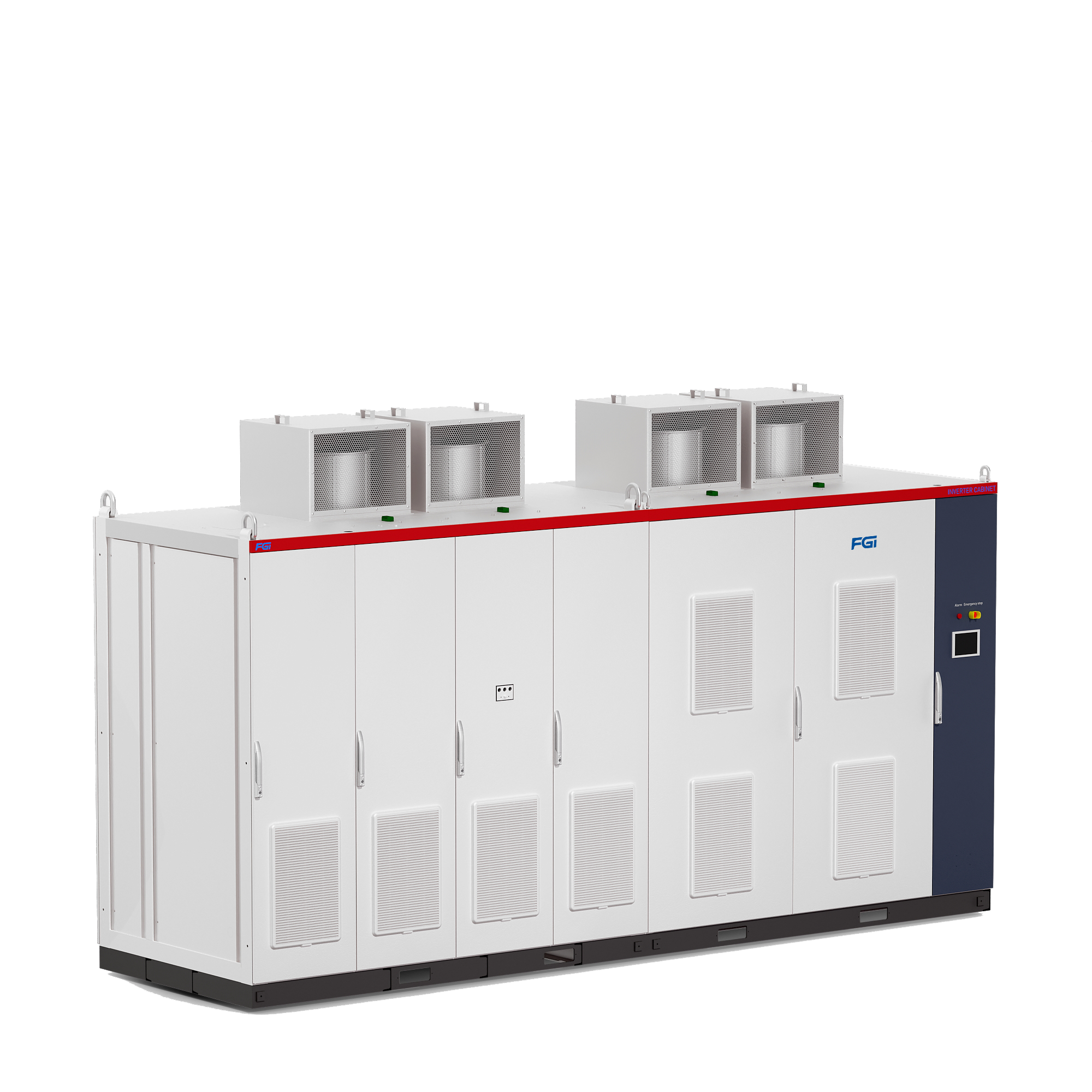

FD5000-压缩后5
FD5000-压缩后6
FD5000-压缩后9
Information collection table
Send inquiry

BASIC INFO

Voltage class
3-13.8kV
Working mode
two quadrants, four quadrants
Output power (kW)
200kW-12000kW
Supply Ability
3000 Sets per Year
OEM/ODM
Yes
Features
No disturbance switching, car start, low voltage crossing, star drift
Cooling type
Forced air cooling, water cooling (high power)
Load type
fan, pump, elevator, belt conveyor.

Features

Description

Anti-interference design

The entire cabinet adopts anti-interference design, better EMC performance.

User friendly interface

10 inches of HMI, parameters display, system operation is more friendly.

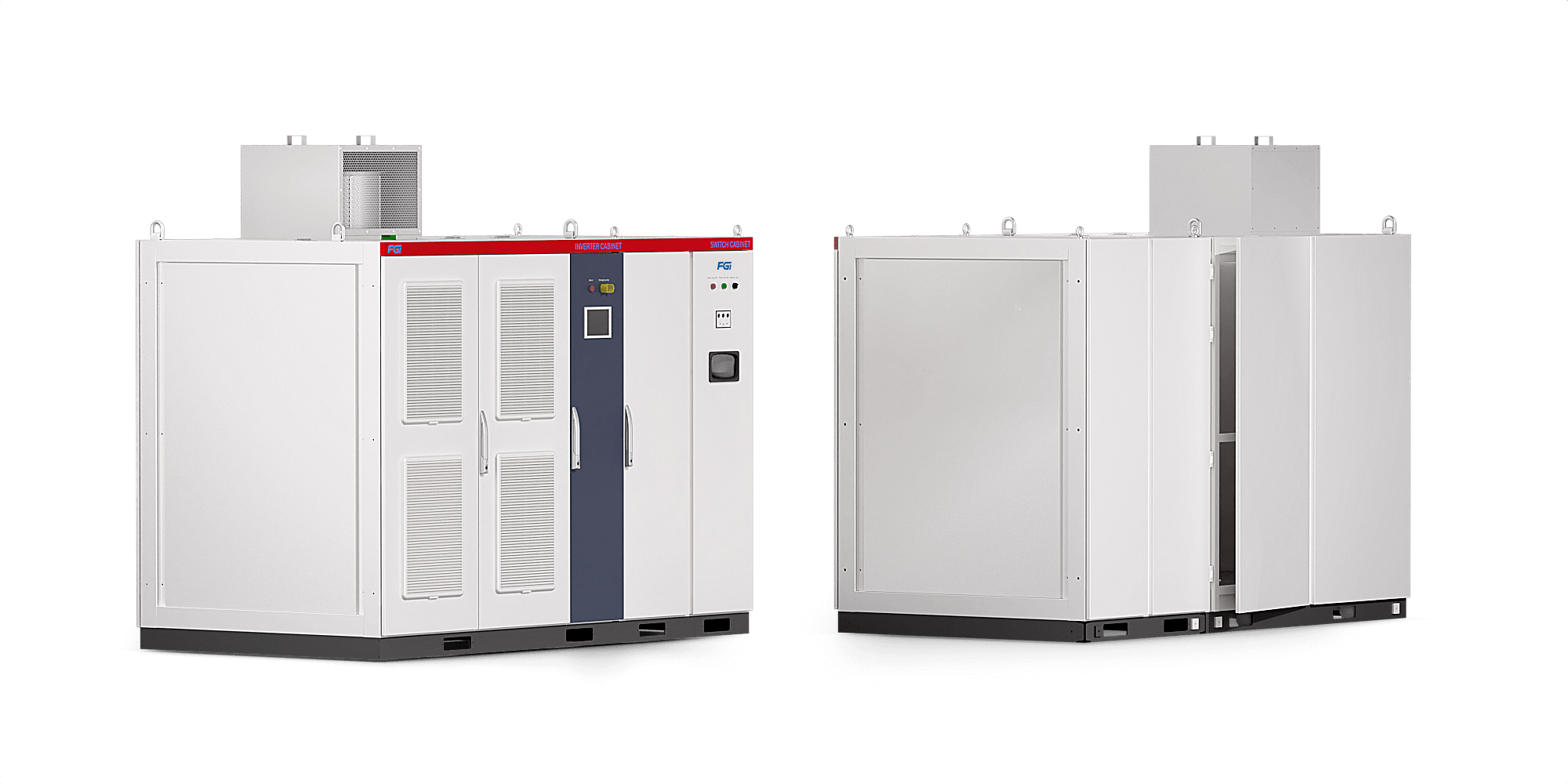

Double-sidedmaintenance of MVD

  • Front & back doors can beopened for operation
  • Suitable for spaciousinstallation place

Parameters

Product series
Standard: FD5000-6/F, FD5000-10/F
Four qudrant: FD5000-6/T,FD5000-10/T
Rated Power
Standard: 200kW-12000kW
Four qudrant: 200KW-2000kW
Overload
Standard: 105%/continuing; 130%/60s; 150%/3s; 180%/turning off
Four qudrant: 150%/continuing; 180%/60s; 250%/turning off
Output voltage
Standard: 0~3/3.3kV; 0-6/6.6kV; 0-10/11kV
Four qudrant: 0~3.3KV,0-6/6.6kV,0-10/11kV
Output wave
A goup of SPWM waves
Phase,Frequency,Voltage
3AC,50/60Hz,3/3.3kV,6/6.6KV,10/11KV
Fluctuation range
Voltage:-10%~+10%; Frequency:±5%; Continuous running at the low power of -15%~-35%
Start frequency
The value can be set from 0 to 10Hz
Precison
Analog setting:0.3%of the highest frequency setting value(25±10°℃) Digital setting:0.1%of the highest frequency setting value(-10~+50°℃)
Resolution
Analog settng:0.05%of the highest frequency setting value Digital setting: 0.01 Hz(less than 99.99Hz),0.1Hz (larger than100Hz)
Efficiency
>98%,in rated condition
Power factor
>0.95
The time of acceleration and deceleration
0.1~6000.0s, acceleration and deceleration time can be set separately
The feature of voltage and frequency
Set by the V/F curve
PID
Build-in standard PID function
The other functions
V/F curveCompensation for the low frequency,Rated current,The value of the protection current
Isolation of high voltage
electromagnetic coupling and more optical fiber channels
Control circuit powersupply
1AC 220V 2KVA
Operation modes
The local control,Remote control,and host computer control
Frequency setting modes
Settng on touch screen,multi-step speed setting,Analog signal settng (0-20mA)
The running state
Instructions of relays,Fault,Alarm, Running or stop
Touch screen display
Input/output voltage,Input/output current,setting value,Cells states, Running states, Transformer states,Cell bus
Protection function
Over-current of the motor,Over-voltage of the inverter,Under-voltage of the inverter,Over-current of the cell, Over-voltage of the cell,Over-heat of the cell,Lack phase of cell, Communication failure.
Application fields
Indoor,Non-corrosive and conductive gas,dust,direct sunlight,the altitude below 1,000 meters(high altitude can be customized design)
Temperature and humidity
-10℃~+40℃ /20~90%RH no condensation
Vibration
5m/s²(below 0.6g)
Storage temperatue
-20~+65℃ short time transportation allowed
Cooling method and protection level
forced air cooling /IP31
